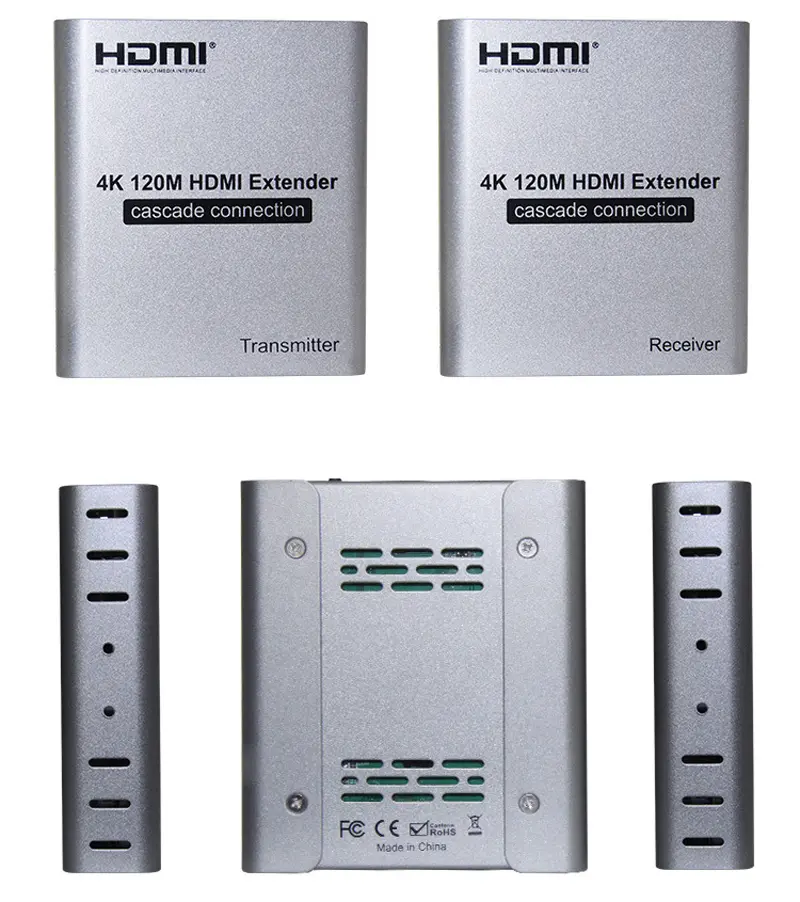

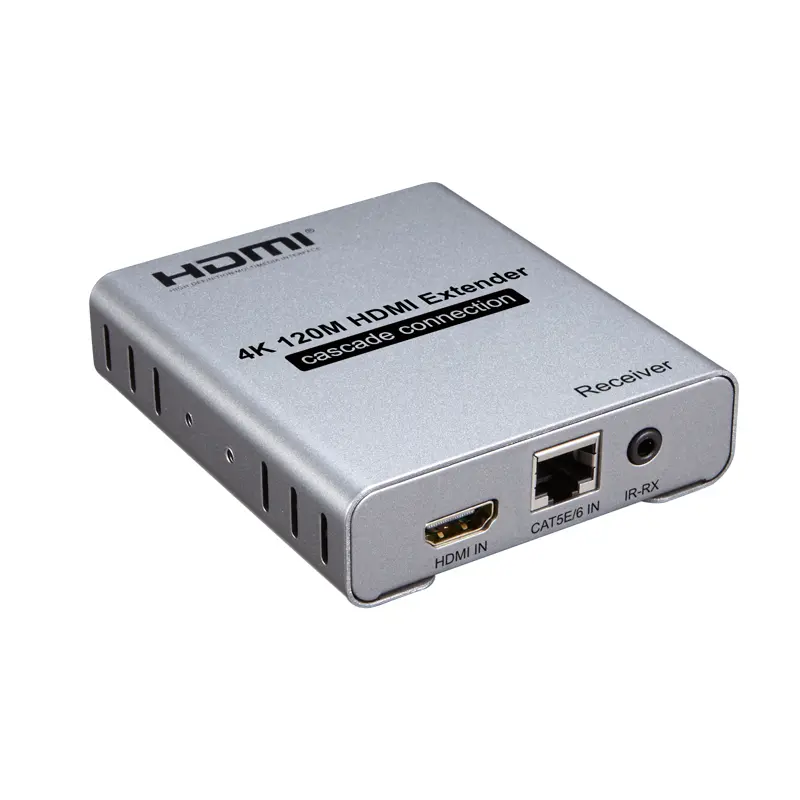

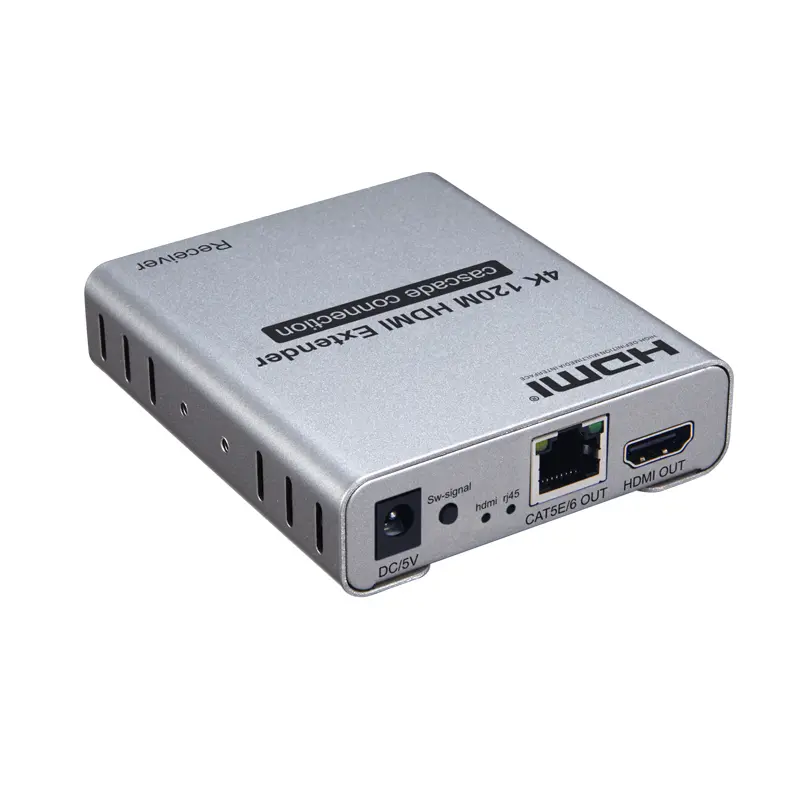

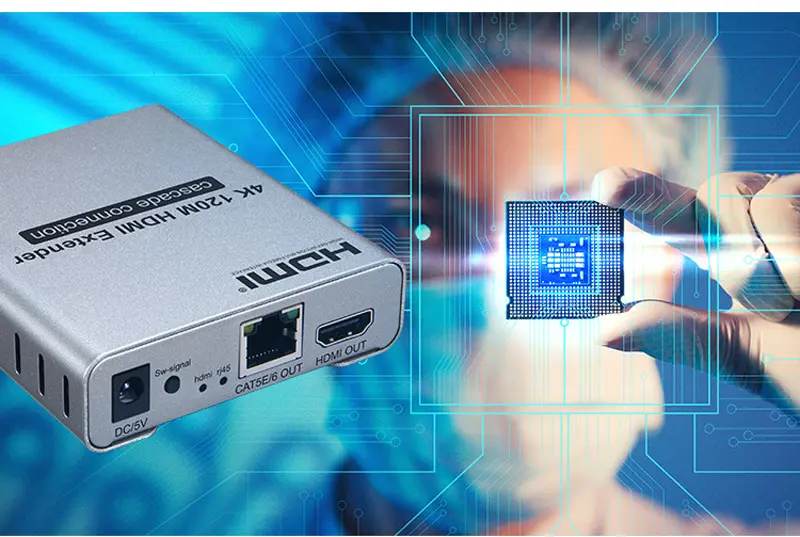

4K 120m HDMI Extender with loop-out(JL-4K1201C)
4K 120m HDMI Extender with loop-out(JL-4K1201C)

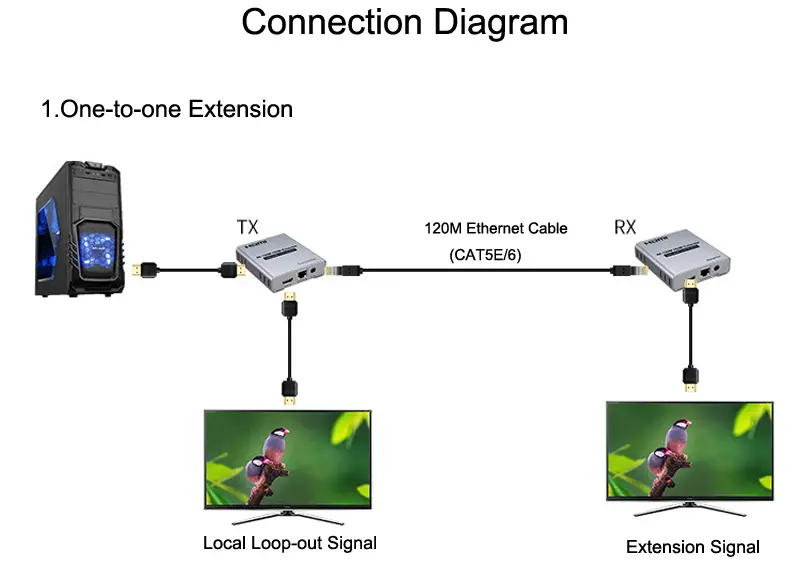

This integrated cable extender replaces the HDMI cable with a CAT5e or CAT6 cable (recommended). It can transmit HDMI1.4 4K@30Hz HDM1.3 1080P I for 120 meters.
The purpose of the extender is to use low-cost wires. To achieve long-distance signal transmission.
Share to:
Features:
1:120M long distance transmission

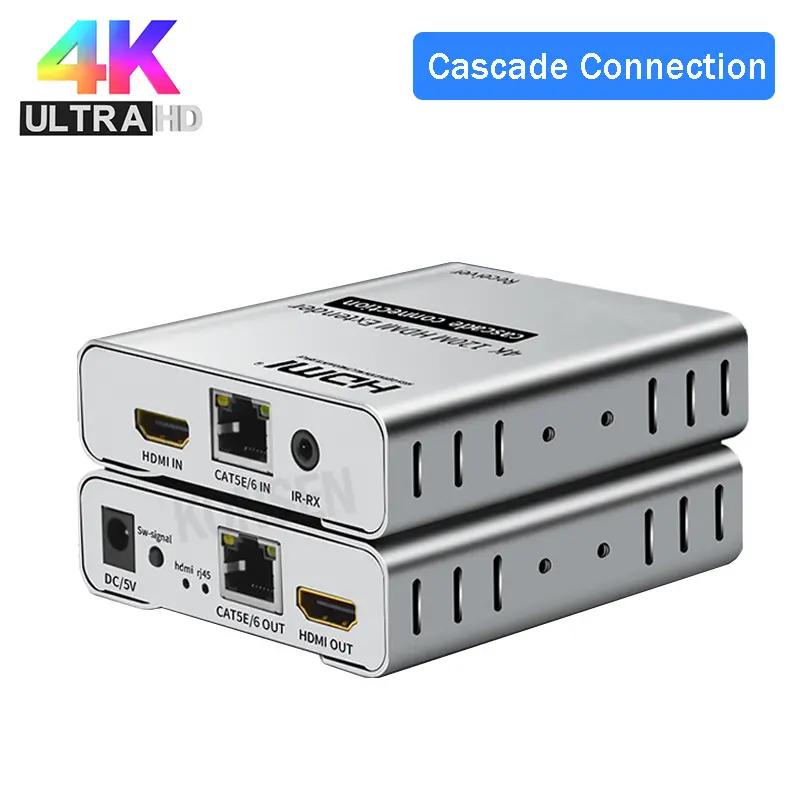

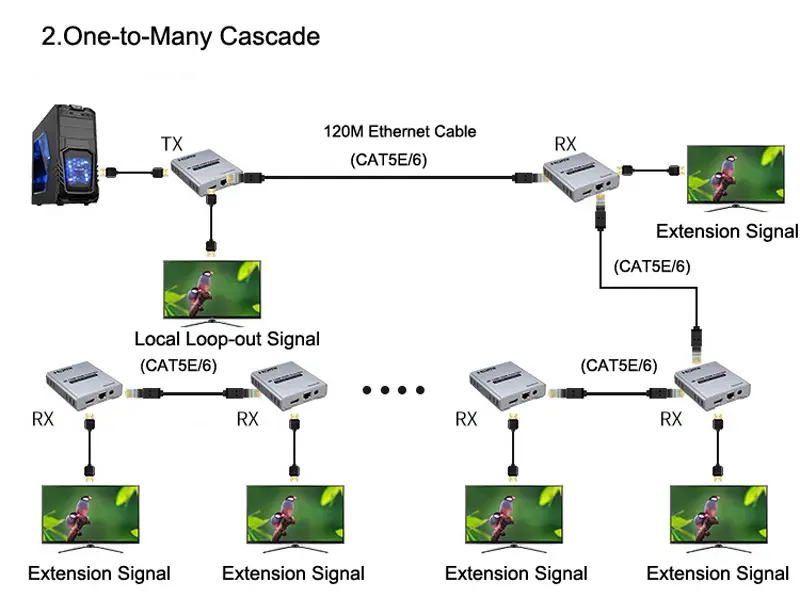

2: Multi-receive cascading transmission
3: Low power consumption, low temperature and high safety.
4: Support 4K@30HZ HDMI1.4 or below.

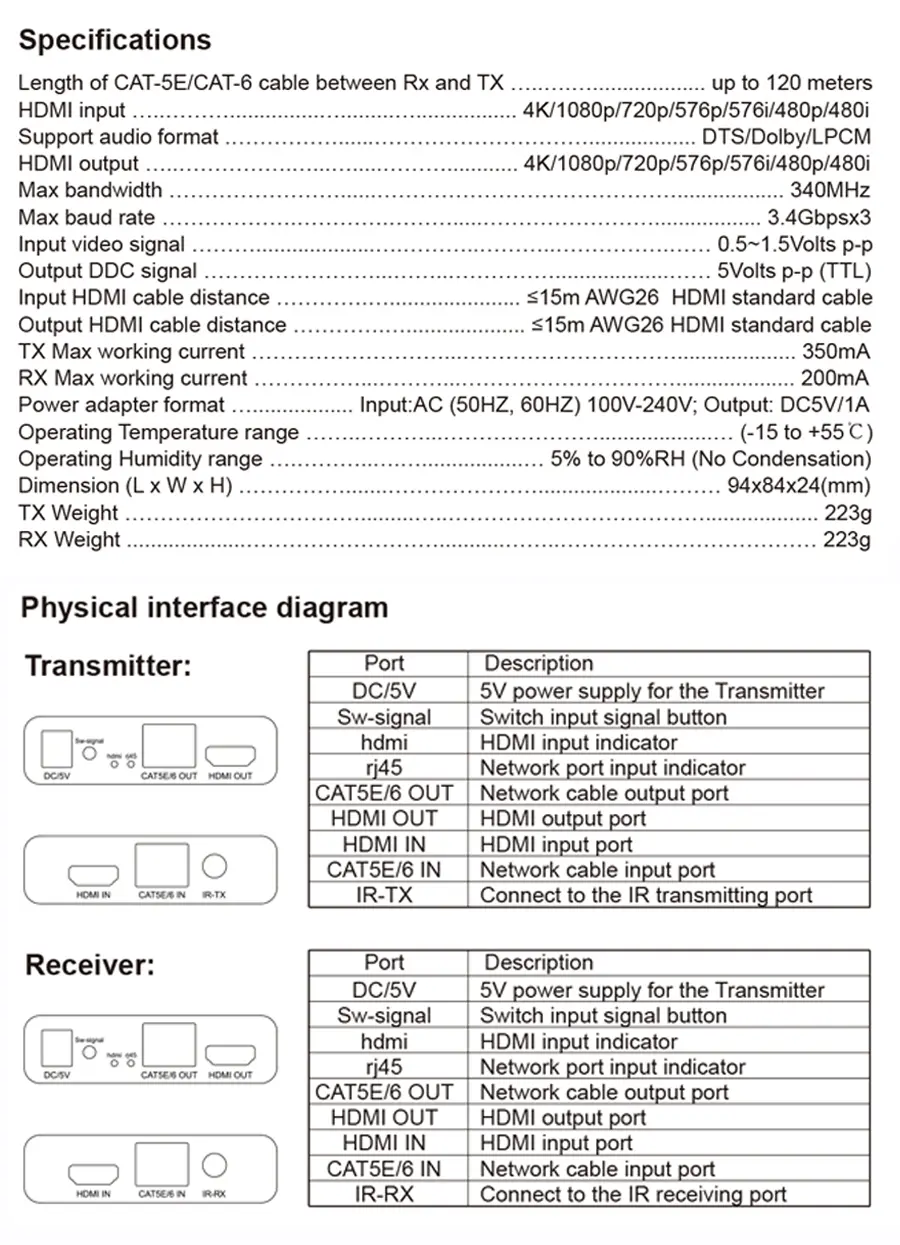

Specifications:
Extended distance: transmission up to 120M (CAT5E/6)
Input video signal: 5Volts p-p(TTL)
Video resolution support: Up to 3840 X 2160/30HZ backward compatible.
Support audio format: DTS/Dolby/LPCM
Support video format: 4K/1080P/720P and so on.
Maximum bandwidth transmission: 340MHz
Maximum transfer rate: 3 x 3.4Gbps
Input cable length: ≤15M AWG26 HDMI standard cable
Output cable length: ≤15M AWG26 HDMI standard cable
Maximum operating current: TX: 350mA; RX: 200mA
Power adapter specifications: input: AC (50HZ, 60HZ) 100-240V; output: DC5V / 1A;
Operating temperature range: (-10∽+45°C)
Size: 94*84*24 (mm)
Weight: 223g*2

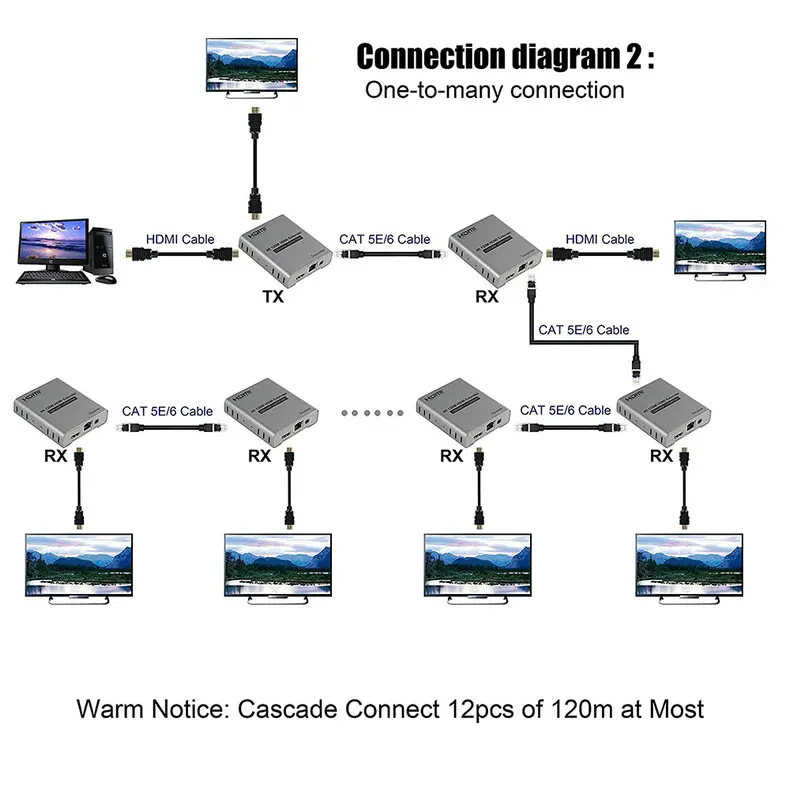

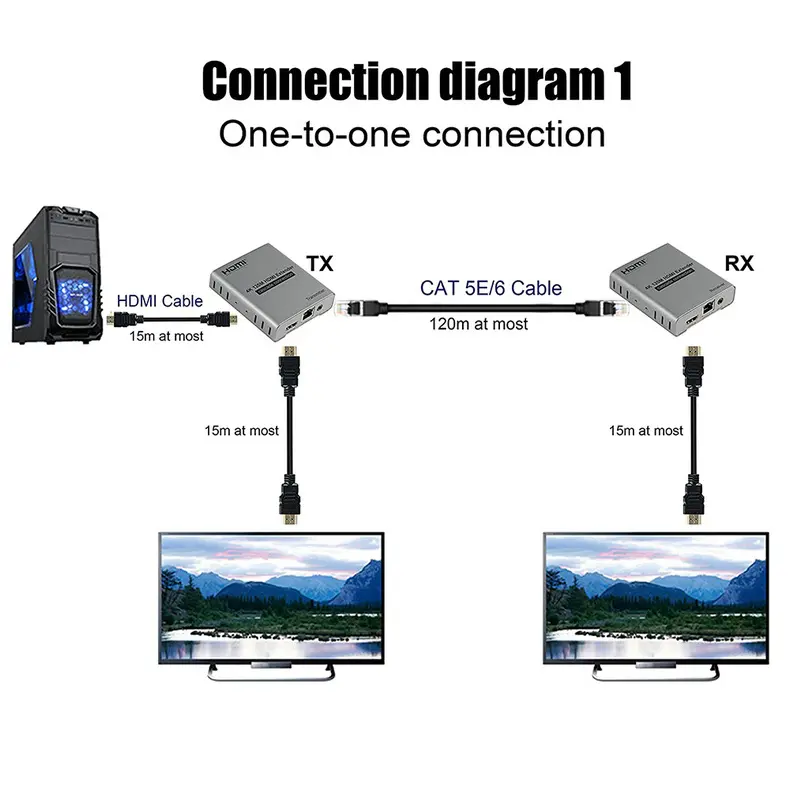

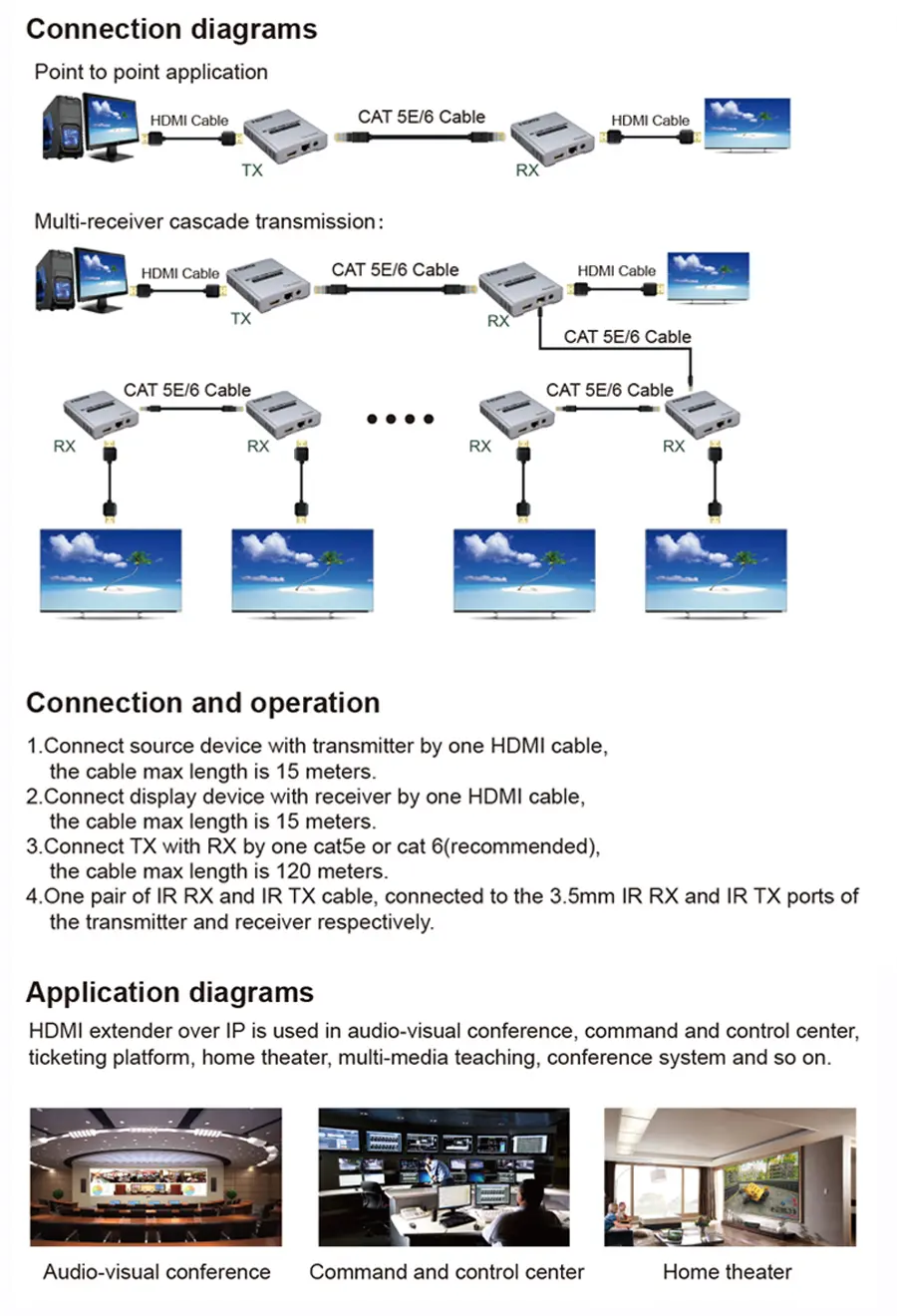

Application diagrams:
HDMI extender is used in audio-visual conference, command and control center, ticketing platform, home theater, multi-media teaching, conference system and so on.
