Description:
This is a component video (YPbPr) converter that allows old analog equipment to be seamlessly integrated into modern home
theaters.
This adapter connects the component video equipment of the home theater to anHDTV compatible digital monitor. This adapter also
takes fullHDMI-Compatible video and audio effects that are automatically encoded digitally toHDMI-Compatible signals.
Using an analog audio toHDMI-Compatible adapter, traditional home theater equipment can be easily connected to anyHDMI-Compatible
display for a complete digital video and audio experience.

Features

1. Allows you to connect the YPbPr HDTV signal source to theHDTV-Compatible display;
   2. Simulate the video signal intoHDTV-Compatible video and audio;
   3. Support HDTV/YPbPr;
   4. Support the highest video resolution 1080P;
   5. Support 165MHz/1.65Gbps per channel (6.75Gbps full channel) bandwidth;
   6. Support 8bit per channel (24bit for all channels) deep color;
   7. Support uncompressed audio, such as for DTS Digital, for Dolby Digital (including for DTS-HD and for Dolby True HD)

Specification

Input DDC signal: 0.5-1.0 V p-p
HDTV-Compatible connector: Type A (19-pin) female
Video interface: 3 RCA component
Audio interface: 2 RCA component
Output video:HDTV-Compatible 1.3
Vertical frequency range: 50/60Hz
Input video amplifier bandwidth: 1.65Gbps/165MHz
Interlaced (50&60HZ): 480i, 576U, 10801
Progressive (50&60Hz): 480p, 576p, 720p, 1080p
Working temperature: 0 to +70°C
Working humidity: 10% to 85% RH (non-condensing)
Storage temperature: -10 to +80°C
Storage humidity: 5% to 95% RH (non-condensing)
External power supply: DC 5V/1A
Power consumption (maximum): 5W

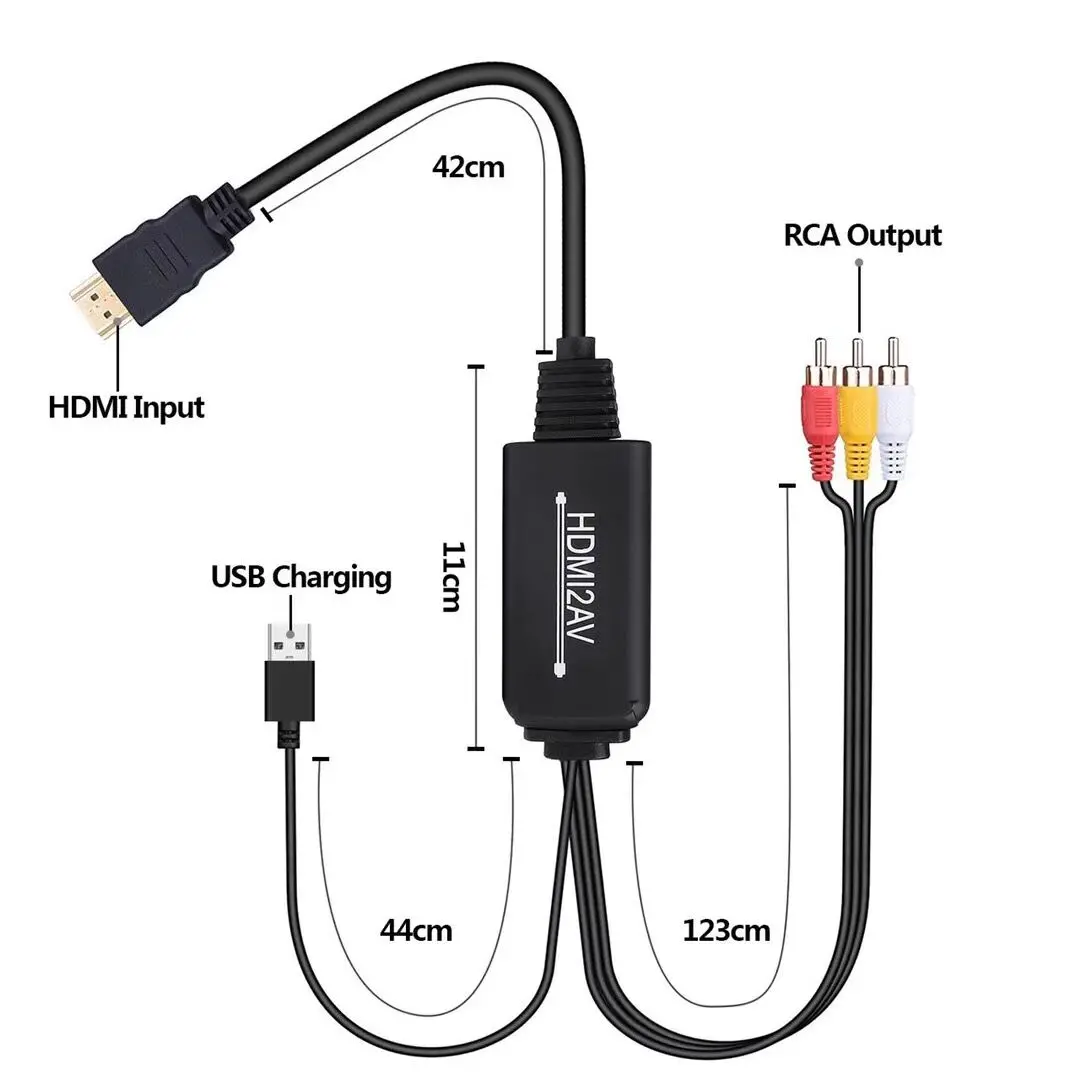

Size: 88*75*25mm

Note:
There may be slight size deviations due to manual measurement, different measuring methods and tools.
The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.
